Design Sketches for Jewellery

  • Режим отображения
ziya Ismail
  • 11
  • 0

  • Поделиться

Author: Ziya Ismail

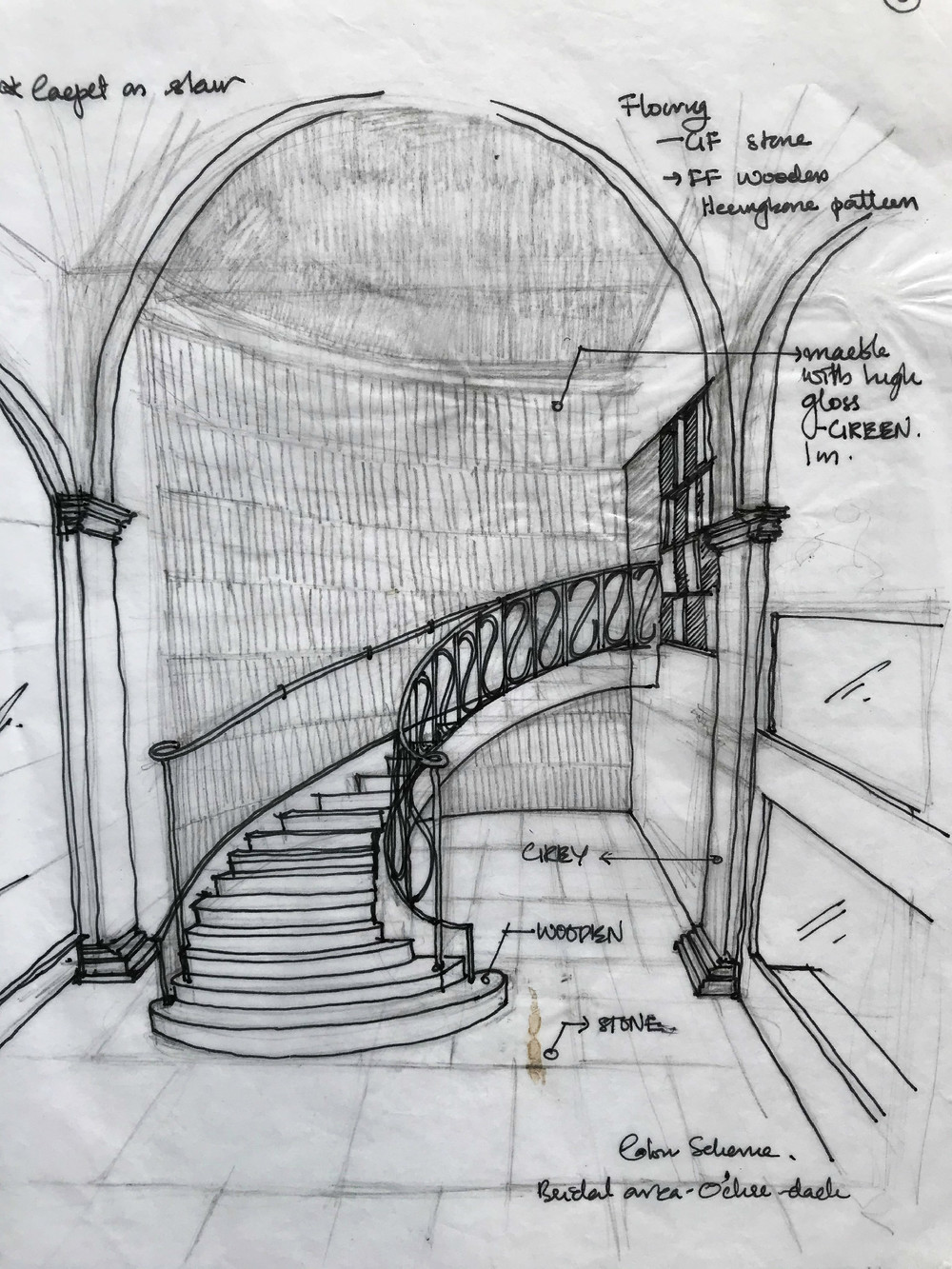

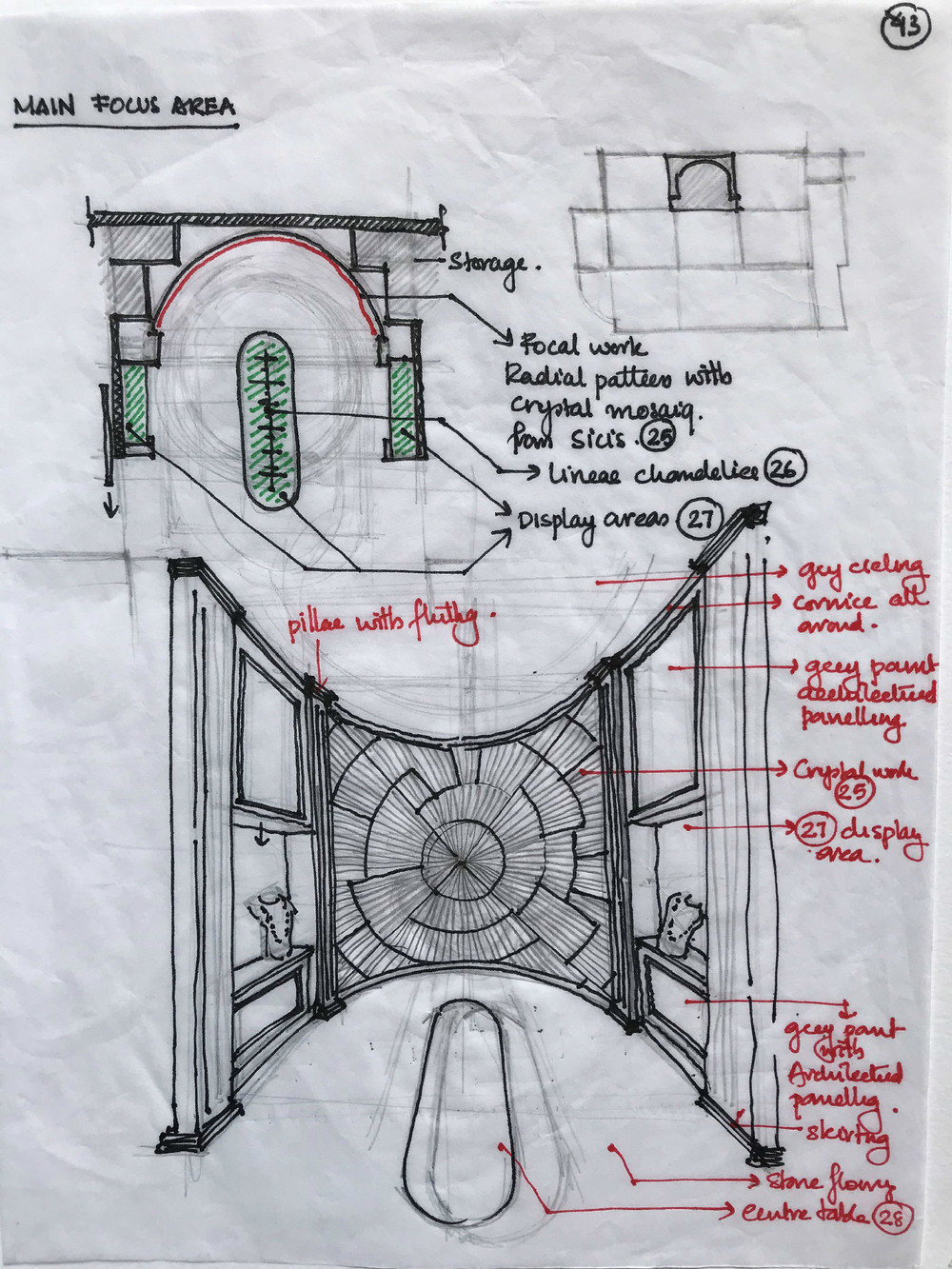

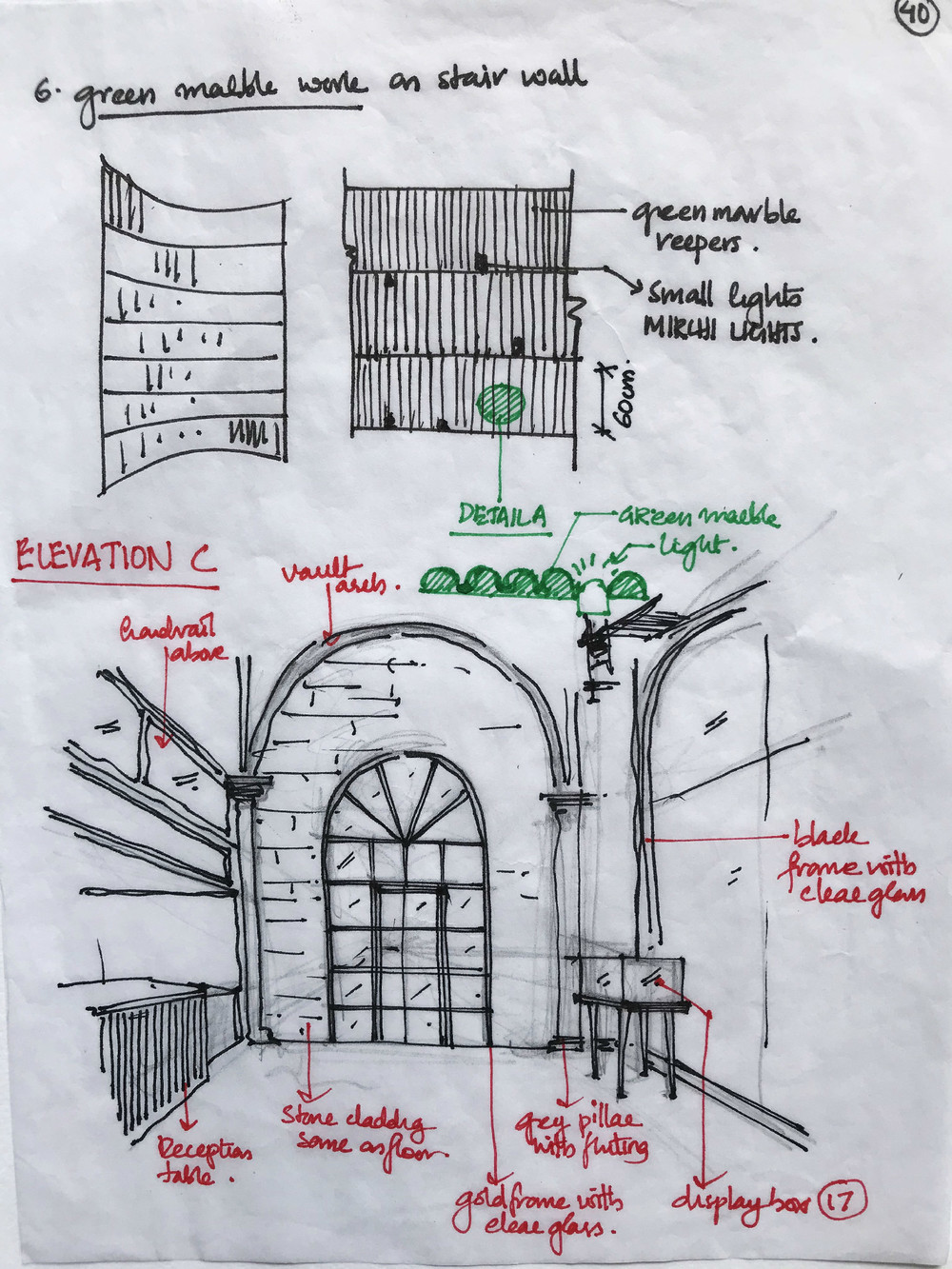

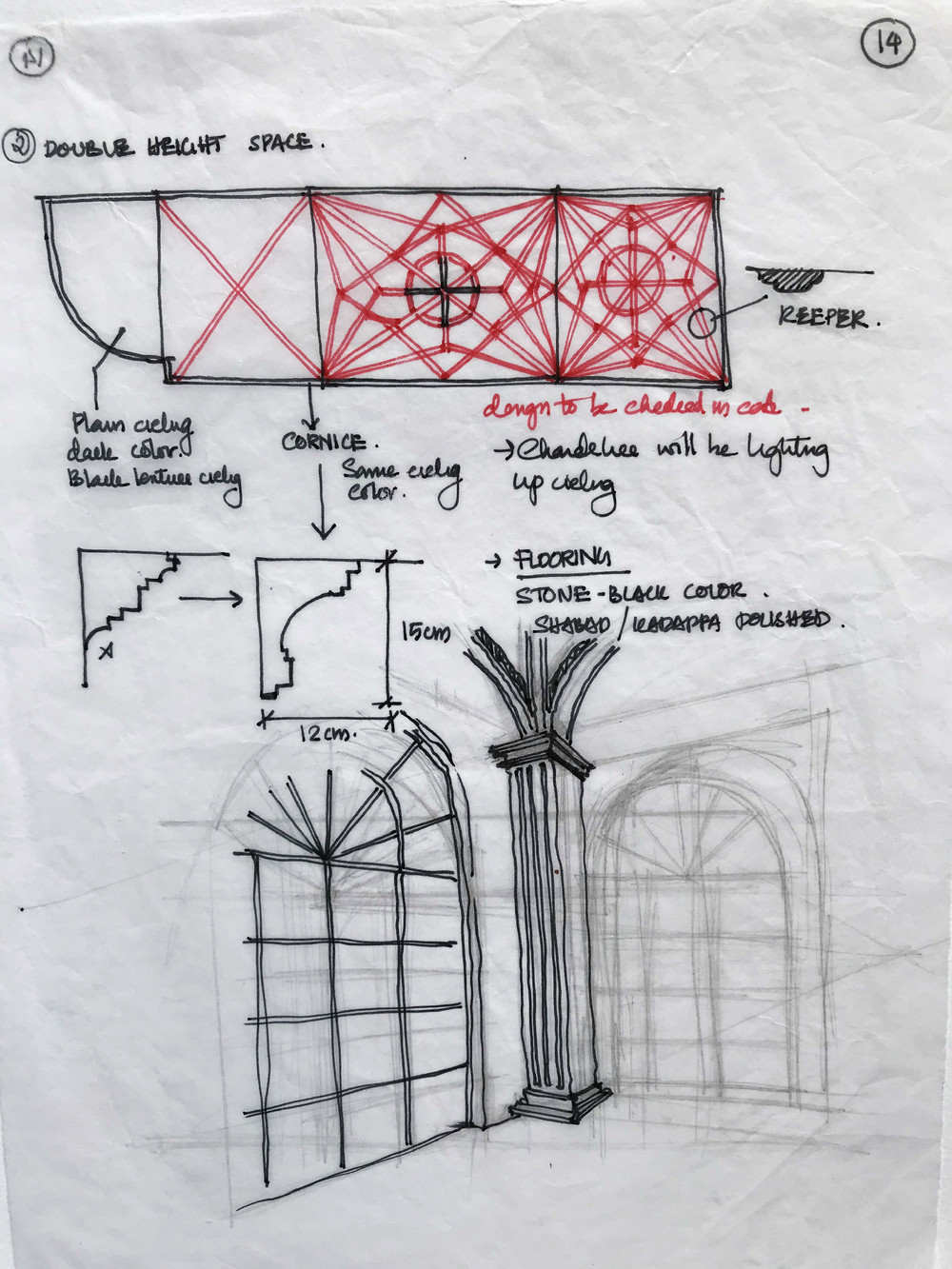

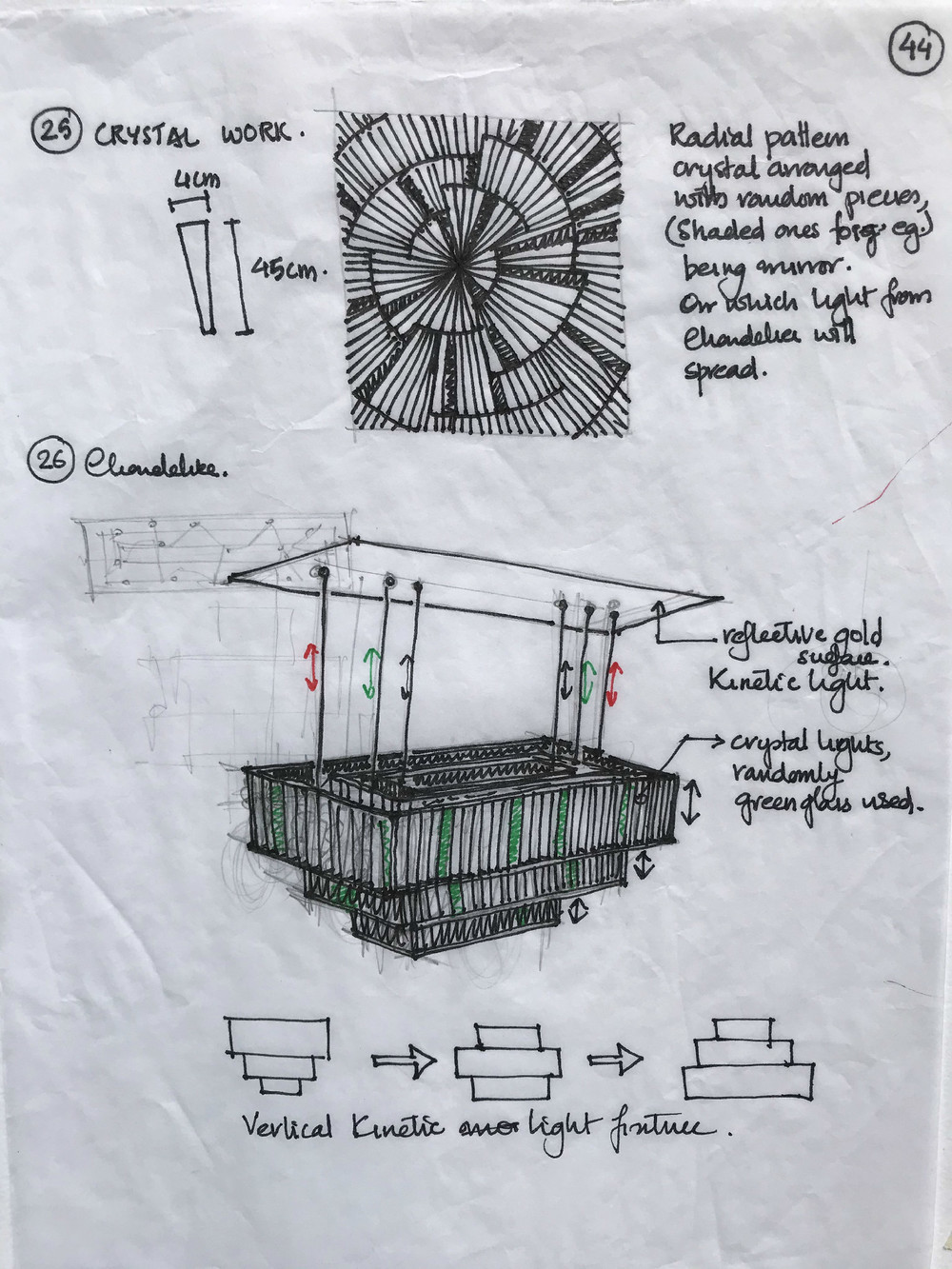

These sketches are done while the deisgning of a jewellery in kerala, India. Spaces and feature were visualised and conveyed through these sketches. Small sections and details are marked near the main sketch so that it gets conveyed thouroughly. These are the 5 sheets from 45sheets of design sketches done for this project. The first sketch showsthe accent space with a radial arrangement of mirror and crystal, above is the plan and below is the view. Top right is the keyplan. Second sheet shows detail of the crystalwork on top and lighting design for the same space below. Third sketch shows the stair area which has very much importance in this whole project, this was done to convey the double height and curves. Flooring division and curved wall design was also worked out in this one. In fourth sketch above shows elevation and detail of wall design. Below sketch shows the opposite side of the stair. In Fifth sketch opposite side of stair is shown with emphasis to the corner. .above sketch shows the vault design and middle the cornice sections can be seen.

Размеры рисунка или рисунков (в см) / Sizes of the Drawing/Drawings (cm): 19 x 24.5 cm

Drawing technique / Техника исполнения : sketches with soft graphite on butter sheets. marking and finish done with color pens and v5 pilot pen

Год исполнения / Year of the Drawing: 2019
